Cut off saw STROMAB CT 600

Reference : 9118
Brand : STROMAB

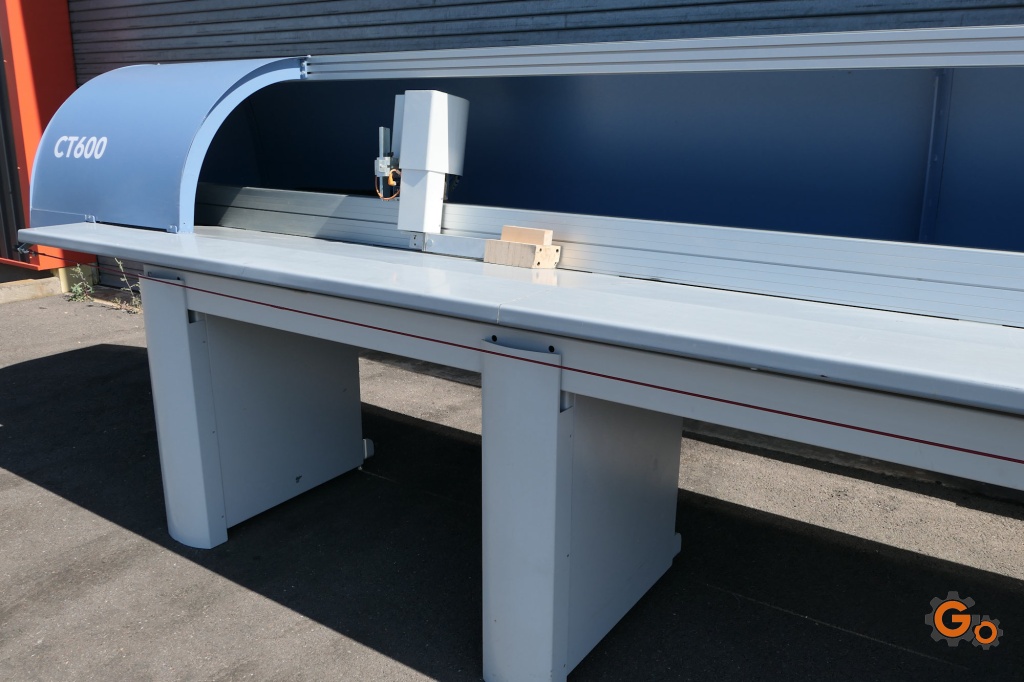

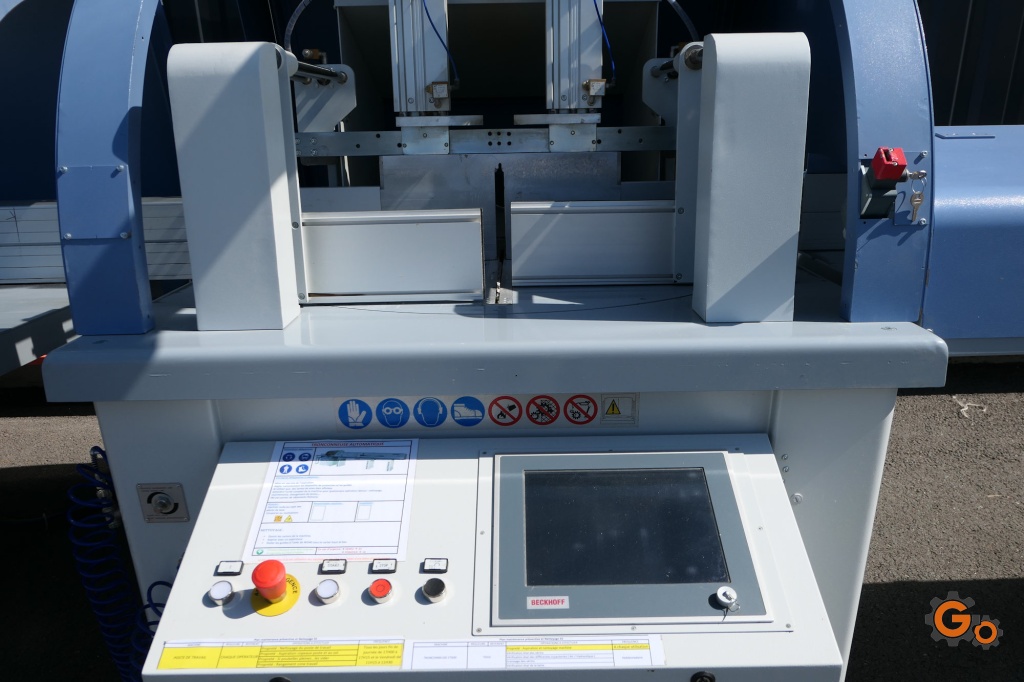

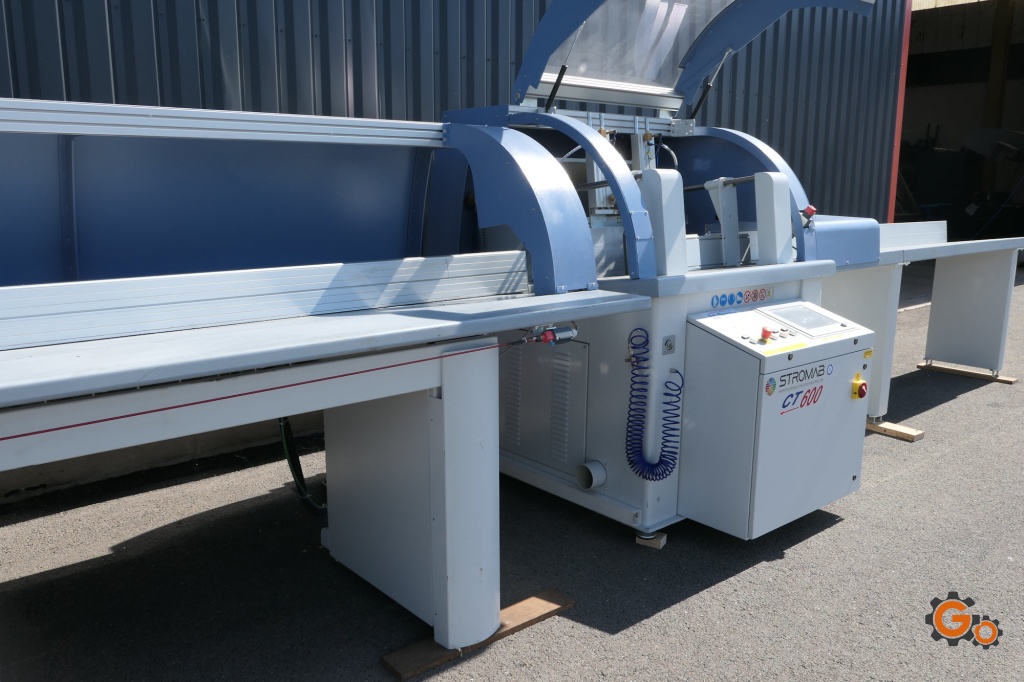

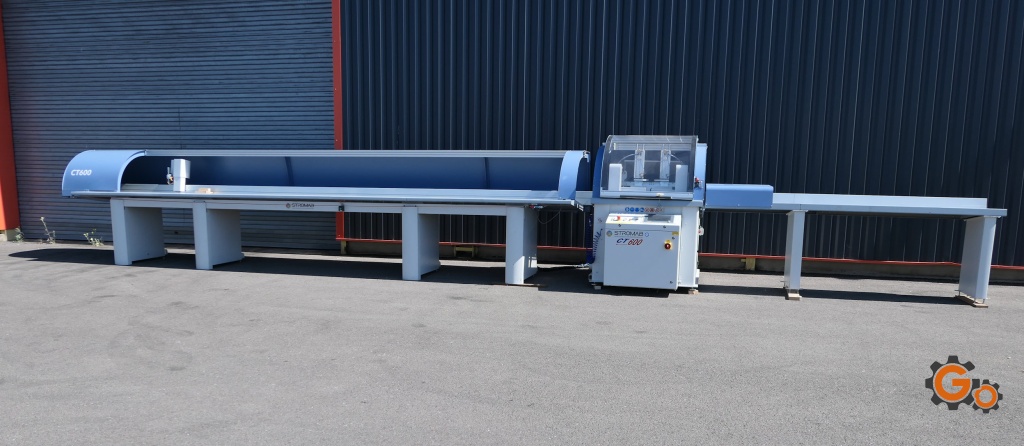

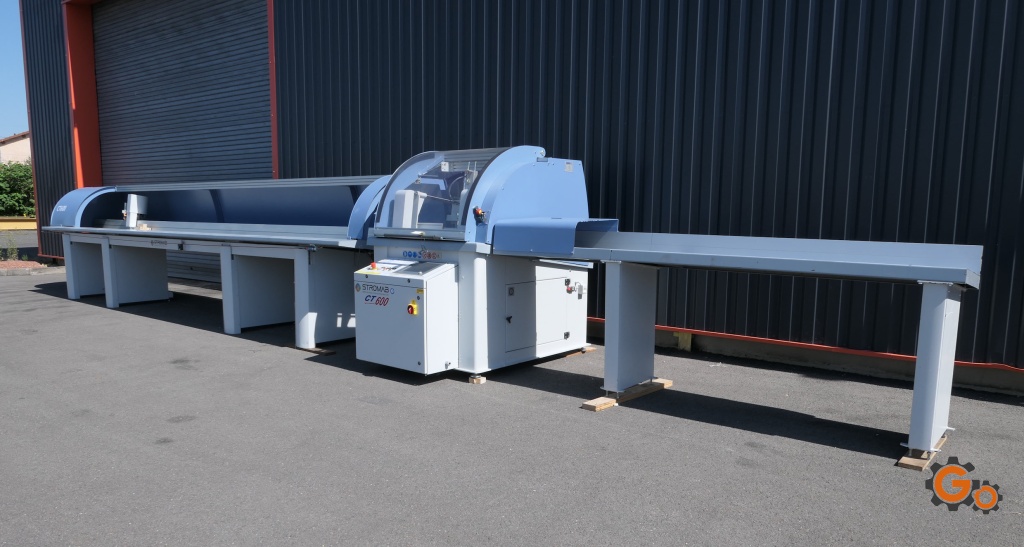

Cut off saw STROMAB CT 600

The CT600 is an automatic feed saw with complete board optimization and deflection.

Thanks to its rotating table, it is the optimal solution for all straight (90°) and angled (+/- 70°) cuts. The software automatically optimizes the cut list to reduce waste and streamline the machining process based on four criteria: maximum length, minimum waste, sequence, and priority.

. (...) Read the full description
Tags : #second hand cut off saw stromab
URL : https://www.giroudon.fr/prod-cut-off-saw-stromab-ct-600-6k1p55dkcyz105d5iot5.html
Article available!

Information and quotation

Interested in this product ?

Ask for a free estimate
Product in my quote

Average response time: 5 days.
If urgent: specify it in the quote form.

Automatic mitre saw for angled cuts

Blade diameter: 600 mm

Motor power: 10 HP

Automatic table rotation: -70°/0°/+70°

2 vertical cylinders for workpiece clamping

Minimum cutting area: 30 x 10 mm

Cutting capacity at 0°: 160 x 310 mm, 80 x 390 mm

Cutting capacity at +/- 45°: 160 x 220 mm, 80 x 270 mm

Cutting capacity at +/- 70°: 160 x 100 mm, 80 x 130 mm

6 m electronic pusher, maximum pusher and return speed: 90 m/min

Blade speed: 2560 rpm

Rotation speed from 0° to 70°: 1.3 s

Year 2017
